For fan newbies and ambitious people who read all of the instructions before putting stuff together.





THE VERY FIRST THING TO CONDISIDER IS...



1. LOCATION

INSIDE? OUTSIDE? UNDER COVER?

Wet rated fans are a must in any area exposed to the elements.
Spaces like covered porches and sunrooms are best served by outdoor fans when condensation and high humidity are factors. Wet rated fans can be used inside as well, but indoor-only fans can’t play outside.



2. STYLE

Narrow your search by finding fans that complement your home’s décor. Go for modern if a streamlined look is more your style or check out traditional fans if they best suit your space. From island-inspired to mid-century, Hinkley has a fan (with plenty of finish and blade options) to fit your vibe.

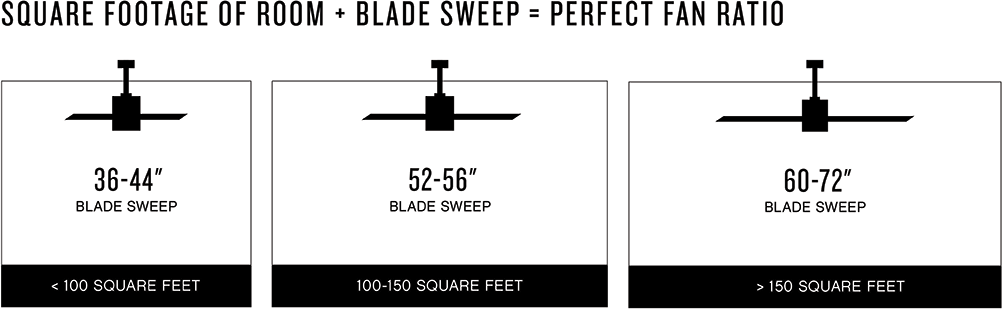

3. SIZE

Choosing the right size fan is important. A fan that is too large can overpower a room, and too small will not circulate enough air. Follow these guidelines:





4. AIRFLOW

CFM is the magic acronym needed to achieve the optimum airflow output of a fan. It also calculates the operating cost and energy expenditure of your fan. So what actually is CFM?



5. LIGHT

BECAUSE SOMETIMES YOU JUST NEED OVER-HEAD LIGHTING. LED LIGHT KITS ARE EITHER
INCLUDED OR OFFERED AS OPTIONAL ACCESSORIES FOR ALL FANS.



6. CONTROL

Fans now have far more options than pull chains to operate! Look for included or optional accessories to make your fan WiFi compatible for smart phone control and integrate with home devices like Alexa and Google Assistant for voice activation.

7. MOTOR

THERE ARE 2 TYPES OF FAN MOTORS:

  • Also known as a spinner motor fan.
  • Uses up to 70% less energy than an AC motor fan.
    They run cooler and quieter for longer life!
8. CUSTOMIZE

Fans are cool because you can customize both aesthetic and operational elements. If you are the kind of person who rearranges your furniture and swaps out throw pillows seasonally, look for fans with reversible blades. If creating a connected home is at the top of your to-do list, check out the many options for controls.













Q. HOW DO I PREVENT WOBBLING?

This is by far the most common concern, and ensuring there are tight and secure screw and hardware connections is key: from the blades to the downrods and junction box, tight = right!


Q. HOW MANY TYPES OF FAN MOTORS ARE THERE?

There are two types of motors...

AC - Also known as a spinner motor fan.

DC - Use up to 70% less energy than an AC motor fan. They run cooler and quieter for longer life!

Q. Will my Hinkley fan sync with any current Smart devices?

EVERY Hinkley model can be a smart fan with purchase of accessory control. The receiver is located in the canopy, which allows for easy access.

  • Hinkley fans can be operated through smart devices such as Google, Alexa and Siri using controls containing BOND app capabilities.
  • EACH AND EVERY FAN MODEL has smart control capabilities, either with the included control or an accessory control.

Q. How do I pair my fan to the correct transmitter using my smart phone (recommended)?


Q. How to factory reset a DC motor (980013/980003) when paired to the wrong transmitter?

STEP 1: Turn main power OFF to all Fans.

STEP 2: Turn main power ON ONLY for THE FAN NEEDING CODE CORRECTION.

STEP 3: Press and hold "0" button on remote (or wall control SET button) for 20 seconds (within 60 seconds of power being turned on). Fan should begin moving.

‐ Light Kit should DOUBLE BLINK TWICE. TWO double blinks indicates successful factory reset.

‐ If Light Kit only double blinks once it is just pairing & not resetting.

NOTE: Fan control is now in "UNIVERSAL" mode. In Universal mode the receiver will talk to any/all controls until paired with one specific one.

COMPLETE THE REMAINING STEPS TO PAIR TO A SINGLE CONTROL.

STEP 4: Turn the main power off again for 10 seconds.

STEP 5: Turn main power BACK ON ONLY for THE FAN BEING PAIRED/CODE CORRECTED.

STEP 6: Press and hold "0" button on remote (or wall control set button) for 5 seconds or until light first blinks (within 60 seconds of the power being turned on).

Now the fan should be coded to the correct transmitter only.


Q. How do I pair my AC 3 Speed Motor Controls + Accessories?


Q. How do I pair my AC 4 Speed Motor Controls + Accessories?


Q. How do I use my HIRO control?

Q. CAN I CUSTOMIZE MY HINKLEY FAN?

Fans are cool because you can customize both aesthetic and operational elements. If you are the kind of person who rearranges your furniture and swaps out throw pillows seasonally, look for fans with reversible blades. If creating a connected home is at the top of your to-do list, check out the many options for controls.

Q. WHAT IS CFM & HOW CAN I BETTER ACHIEVE OPTIMUM AIRFLOW?

CFM is the magic acronym needed to achieve the optimum airflow output of a fan. It also calculates the operating cost and energy expenditure of your fan.

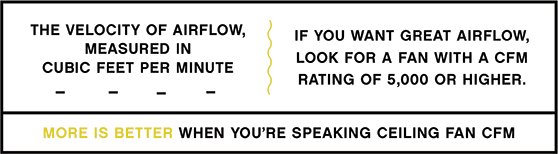

THE VELOCITY OF AIRFLOW, MEASURED IN CUBIC FEET PER MINUTE. IF YOU WANT GREAT AIRFLOW, LOOK FOR A FAN WITH A CFM RATING OF 5,000 OR HIGHER.


Q. WHAT ARE SUMMER AND WINTER MODE?

SUMMER MODE: Pushes air down from the ceiling to create a wind-chill effect. Fans do not change the temperature in the room, they change the comfort level.

WINTER MODE: Pull air up to the fan and circulates it along the ceiling and down the walls to redistribute the warm air that hovers around the ceiling. When utilized regularly winter mode will allow for a savings in heating costs. You can control reversing from a reverse switch on the fan, the wall control, remote control, or the App.


Q. Will a wall control and a remote control work together on the same fan?

  • 3 speed fans: Yes, as long as they are both paired to the fan receiver
  • 6 speed fans: Yes, as long as they are both paired to the fan receiver
  • 4 speed fans: No, remote and wall cannot be used in conjunction.

Q. ARE HINKLEY FANS RATED FOR VARIOUS OUTDOOR APPLICATIONS?

Many fans in our line are WET and DAMP rated. Damp rated fans must be covered in some way by a roof, canopy or awning and should not have direct contact with rain or sunlight. Any outdoor fan can operate in an interior application.

Q. WHAT IS THE WARRANTY FOR ALL HINKLEY FANS:

Limited Lifetime on the fan motor

  • 5-year warranty on the LED components
  • 1-year on remaining parts















THE VERY FIRST THING TO CONDISIDER IS...



1. LOCATION

INSIDE? OUTSIDE? UNDER COVER?

Wet rated fans are a must in any area exposed to the elements.
Spaces like covered porches and sunrooms are best served by outdoor fans when condensation and high humidity are factors. Wet rated fans can be used inside as well, but indoor-only fans can’t play outside.



2. STYLE

Narrow your search by finding fans that complement your home’s décor. Go for modern if a streamlined look is more your style or check out traditional fans if they best suit your space. From island-inspired to mid-century, Hinkley has a fan (with plenty of finish and blade options) to fit your vibe.



3. SIZE

Choosing the right size fan is important. A fan that is too large can overpower a room, and too small will not circulate enough air. Follow these guidelines:





4. AIRFLOW

CFM is the magic acronym needed to achieve the optimum airflow output of a fan. It also calculates the operating cost and energy expenditure of your fan. So what actually is CFM?



5. LIGHT

BECAUSE SOMETIMES YOU JUST NEED OVER-HEAD LIGHTING. LED LIGHT KITS ARE EITHER
INCLUDED OR OFFERED AS OPTIONAL ACCESSORIES FOR ALL FANS.



6. CONTROL

Fans now have far more options than pull chains to operate! Look for included or optional accessories to make your fan WiFi compatible for smart phone control and integrate with home devices like Alexa and Google Assistant for voice activation.

7. MOTOR

THERE ARE 2 TYPES OF FAN MOTORS:

  • Also known as a spinner motor fan.
  • Uses up to 70% less energy than an AC motor fan.
    They run cooler and quieter for longer life!
8. CUSTOMIZE

Fans are cool because you can customize both aesthetic and operational elements. If you are the kind of person who rearranges your furniture and swaps out throw pillows seasonally, look for fans with reversible blades. If creating a connected home is at the top of your to-do list, check out the many options for controls.













Q. HOW DO I PREVENT WOBBLING?

This is by far the most common concern, and ensuring there are tight and secure screw and hardware connections is key: from the blades to the downrods and junction box, tight = right!


Q. HOW MANY TYPES OF FAN MOTORS ARE THERE?

There are two types of motors...

AC - Also known as a spinner motor fan.

DC - Use up to 70% less energy than an AC motor fan. They run cooler and quieter for longer life!

Q. Will my Hinkley fan sync with any current Smart devices?

EVERY Hinkley model can be a smart fan with purchase of accessory control. The receiver is located in the canopy, which allows for easy access.

  • Hinkley fans can be operated through smart devices such as Google, Alexa and Siri using controls containing BOND app capabilities.
  • EACH AND EVERY FAN MODEL has smart control capabilities, either with the included control or an accessory control.

Q. How do I pair my fan to the correct transmitter using my smart phone (recommended)?


Q. How to factory reset a DC motor (980013/980003) when paired to the wrong transmitter?

STEP 1: Turn main power OFF to all Fans.

STEP 2: Turn main power ON ONLY for THE FAN NEEDING CODE CORRECTION.

STEP 3: Press and hold "0" button on remote (or wall control SET button) for 20 seconds (within 60 seconds of power being turned on). Fan should begin moving.

‐ Light Kit should DOUBLE BLINK TWICE. TWO double blinks indicates successful factory reset.

‐ If Light Kit only double blinks once it is just pairing & not resetting.

NOTE: Fan control is now in "UNIVERSAL" mode. In Universal mode the receiver will talk to any/all controls until paired with one specific one.

COMPLETE THE REMAINING STEPS TO PAIR TO A SINGLE CONTROL.

STEP 4: Turn the main power off again for 10 seconds.

STEP 5: Turn main power BACK ON ONLY for THE FAN BEING PAIRED/CODE CORRECTED.

STEP 6: Press and hold "0" button on remote (or wall control set button) for 5 seconds or until light first blinks (within 60 seconds of the power being turned on).

Now the fan should be coded to the correct transmitter only.


Q. How do I pair my AC 3 Speed Motor Controls + Accessories?


Q. How do I pair my AC 4 Speed Motor Controls + Accessories?


Q. How do I use my HIRO control?

Q. CAN I CUSTOMIZE MY HINKLEY FAN?

Fans are cool because you can customize both aesthetic and operational elements. If you are the kind of person who rearranges your furniture and swaps out throw pillows seasonally, look for fans with reversible blades. If creating a connected home is at the top of your to-do list, check out the many options for controls.

Q. WHAT IS CFM & HOW CAN I BETTER ACHIEVE OPTIMUM AIRFLOW?

CFM is the magic acronym needed to achieve the optimum airflow output of a fan. It also calculates the operating cost and energy expenditure of your fan.

THE VELOCITY OF AIRFLOW, MEASURED IN CUBIC FEET PER MINUTE. IF YOU WANT GREAT AIRFLOW, LOOK FOR A FAN WITH A CFM RATING OF 5,000 OR HIGHER.


Q. WHAT ARE SUMMER AND WINTER MODE?

SUMMER MODE: Pushes air down from the ceiling to create a wind-chill effect. Fans do not change the temperature in the room, they change the comfort level.

WINTER MODE: Pull air up to the fan and circulates it along the ceiling and down the walls to redistribute the warm air that hovers around the ceiling. When utilized regularly winter mode will allow for a savings in heating costs. You can control reversing from a reverse switch on the fan, the wall control, remote control, or the App.


Q. Will a wall control and a remote control work together on the same fan?

  • 3 speed fans: Yes, as long as they are both paired to the fan receiver
  • 6 speed fans: Yes, as long as they are both paired to the fan receiver
  • 4 speed fans: No, remote and wall cannot be used in conjunction.

Q. ARE HINKLEY FANS RATED FOR VARIOUS OUTDOOR APPLICATIONS?

Many fans in our line are WET and DAMP rated. Damp rated fans must be covered in some way by a roof, canopy or awning and should not have direct contact with rain or sunlight. Any outdoor fan can operate in an interior application.

Q. WHAT IS THE WARRANTY FOR ALL HINKLEY FANS:

Limited Lifetime on the fan motor

  • 5-year warranty on the LED components
  • 1-year on remaining parts
