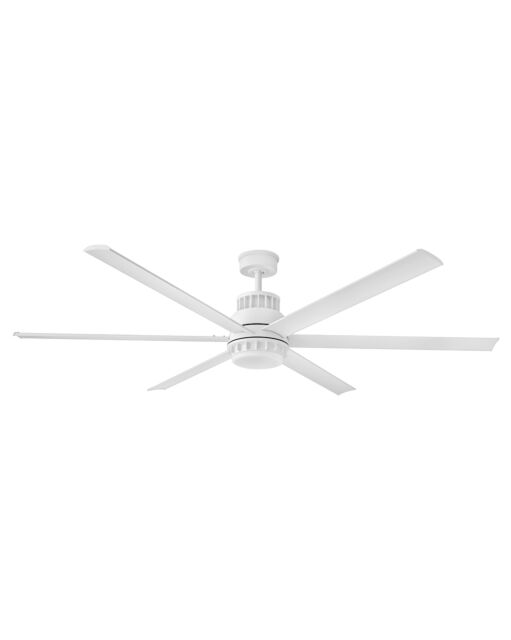

Draftsman 72" LED Smart Fan
905372FMW-LWD
MSRP
$1,199.00
Hinkley Ceiling Fans are available for online purchase through these premium online partners.
Draftsman's updated transitional form ties perfectly into any space while delivering superior performance. Matte White and Matte Black finish options enhance Draftsman's industrial-inspired design to complement indoor and outdoor spaces alike. With integrated LED and DC motor technology, Draftsman delivers excellent energy efficiency. For lower ceilings, a flush mount kit is an accessory option for easy customization. Operated by the HIRO control or WiFi-compatible with the Hinkley app.
- Finish: Matte White
- Glass: White Frosted
- Height: 17"
- Width: 72"
- Blade Material: Aluminum
- Finish: Matte White
- Glass: White Frosted
- Height: 17"
- Width: 72"
- Voltage: 120v
- Blade Material: Aluminum
- Motor Type: DC
- Motor Name: DC 155*22(ferrite)
- Blade Count: 6
- Slope Degree: 20
- Light Source: Integrated LED
- LED Name: EL16W2835
- LED Color Temp: 3000
- LED CRI: 90
- Incandescent Equivalency: 1 x 100w
- LED Lifespan: 50,000 hrs
- Dimmable: Yes, CL Type Dimmer (SSL7A)
Features
- This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
- Suitable for use in wet (interior direct splash and outdoor direct rain or sprinkler) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories.
- This item may be hung on a sloped ceiling
- For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
- This product uses recyclable or limited packaging materials to help reduce waste.
- Powered by a highly efficient and quiet DC motor
- Fan Control included, HIRO Control - 6 Speed Reversing
- WiFi compatible with included fan control
- LED components carry a 5-year limited warranty
- Motor carries a lifetime warranty
- Blades, controls, switches, capacitors and hardware carry a 1-year warranty
- Merging the best of traditional and modern elements with a sophisticated and streamlined look
- Fans should be installed at a minimum of 7 feet from the floor
- Includes down rods: 1-6"
- Canopy: 6.5" Dia.
- UPC Code: 640665023459
- Minimum Height: 11.75
- Housing Diameter: 8.5
- Ceiling to Blade Height: 12.75
- Blade Pitch: 12
- Blade Sweep: 72
- Weight: 28
- Slope Degree: 20
|
Performance Specifications |
Standard | |
|---|---|---|
| High Speed | Average Speed | |
| Airflow | 9902 | 7348 |
| EnergyUse | 33.7 | 24 |
| EnergyCost | 9 | 7 |
| Efficiency | 294 | 305 |
| AMPS | 0.52 | 0.31 |
| RPMS | 112 | 82 |
