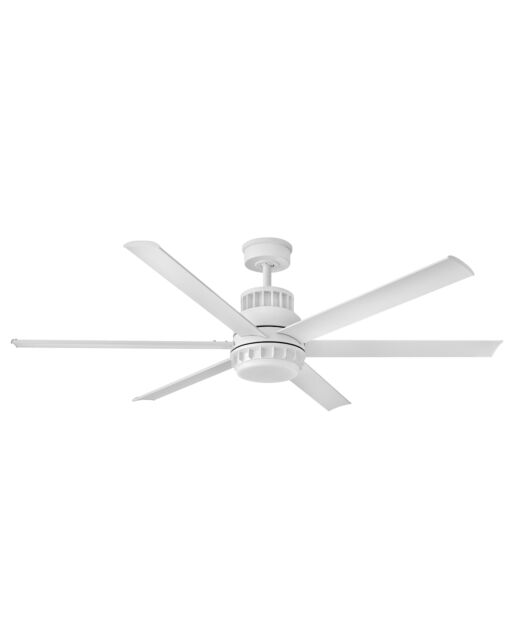

Draftsman 60" LED Smart Fan

MSRP $1,099.00
Draftsman's updated transitional form ties perfectly into any space while delivering superior performance. Matte White and Matte Black finish options enhance Draftsman's industrial-inspired design to complement indoor and outdoor spaces alike. With integrated LED and DC motor technology, Draftsman delivers excellent energy efficiency. For lower ceilings, a flush mount kit is an accessory option for easy customization. Operated by the HIRO control or WiFi-compatible with the Hinkley app.
  • Finish: Matte White
  • Glass: White Frosted
  • Height: 17"
  • Width: 60"
  • Blade Material: Aluminum
  • Finish: Matte White
  • Glass: White Frosted
  • Height: 17"
  • Width: 60"
  • Voltage: 120v
  • Blade Material: Aluminum
  • Motor Type: DC
  • Motor Name: DC 155*22(ferrite)
  • Blade Count: 6
  • Slope Degree: 20
  • Light Source: Integrated LED
  • LED Name: EL16W2835
  • LED Color Temp: 3000
  • LED CRI: 90
  • Incandescent Equivalency: 1 x 100w
  • LED Lifespan: 50,000 hrs
  • Dimmable: Yes, CL Type Dimmer (SSL7A)
  • This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
  • Suitable for use in wet (interior direct splash and outdoor direct rain or sprinkler) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories.
  • This item may be hung on a sloped ceiling
  • For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
  • This product uses recyclable or limited packaging materials to help reduce waste.
  • Powered by a highly efficient and quiet DC motor
  • WiFi compatible with included fan control
  • Fan Control included, HIRO Control - 6 Speed Reversing
  • LED components carry a 5-year limited warranty
  • Motor carries a lifetime warranty
  • Blades, controls, switches, capacitors and hardware carry a 1-year warranty
  • Merging the best of traditional and modern elements with a sophisticated and streamlined look
  • Fans should be installed at a minimum of 7 feet from the floor
  • Includes down rods: 1-6"
  • Canopy: 6.5" Dia
  • UPC Code: 640665023428
  • Minimum Height: 11.75
  • Housing Diameter: 8.5
  • Ceiling to Blade Height: 12.75
  • Blade Pitch: 12
  • Blade Sweep: 60
  • Weight: 26
  • Slope Degree: 20
High Speed Average Speed
Airflow 8389 5776
EnergyUse 32.9 23
EnergyCost 9 6
Efficiency 255 250
AMPS 0.51 0.3
RPMS 147 99
Hinkley lighting and fans: Our mission is to provide consumers with exceptional lighting and ceiling fan products that are superior in design and quality
