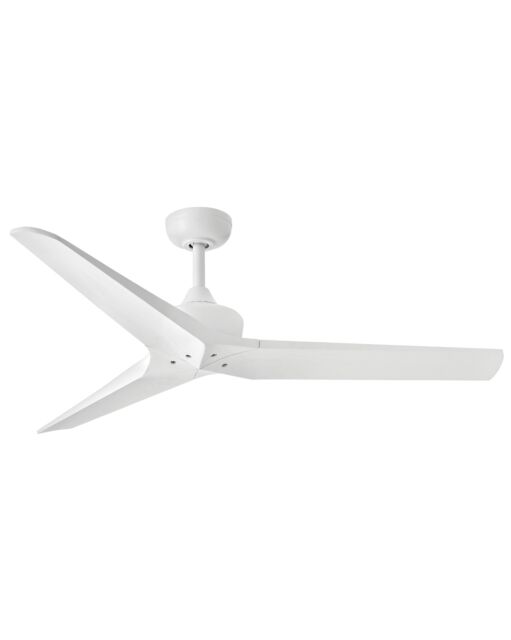

Chisel 52" Smart Fan
903752FWW-NDD
MSRP
$649.00
Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings. Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
- Finish: Matte White
- Height: 13.75"
- Width: 52"
- Blade Material: Wood
- Finish: Matte White
- Height: 13.75"
- Width: 52"
- Voltage: 120v
- Blade Material: Wood
- Motor Type: DC
- Motor Name: DCS-30NW
- Blade Count: 3
- Slope Degree: 20
- LED Name: NO LED ENGINE - Not LED fixture
Features
- Fan Control included, HIRO Control - 6 Speed Reversing
- Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
- For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
- This item may be hung on a sloped ceiling
- Bold silhouette with dramatic details creates a modern statement
- WiFi compatible with included fan control
- This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
- Blades, controls, switches, capacitors and hardware carry a 1-year warranty
- This product uses recyclable or limited packaging materials to help reduce waste.
- Motor carries a lifetime warranty
- Fans should be installed at a minimum of 7 feet from the floor

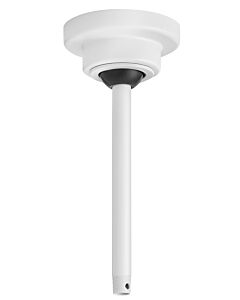

- Includes down rods: 1-6"
- Canopy: 6" Dia.
- UPC Code: 640665026023
- Housing Diameter: 7.5
- Ceiling to Blade Height: 12
- Blade Pitch: 13
- Blade Sweep: 52
- Weight: 23.1
- Slope Degree: 20
Performance Specifications |
Standard | |
---|---|---|
High Speed | Average Speed | |
Airflow | 6292 | 4004 |
EnergyUse | 38 | 25 |
EnergyCost | 10.65 | 7 |
Efficiency | 166 | 160 |
AMPS | 0.53 | 0.29 |
RPMS | 210 | 130 |
